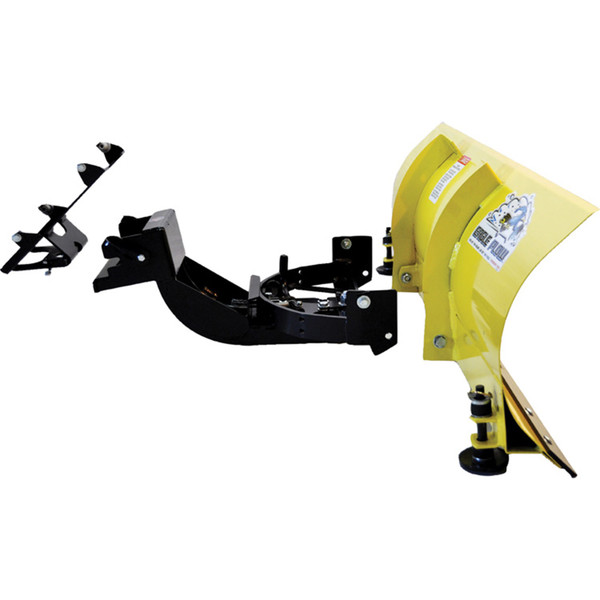

Polaris Ranger 800 Complete Snow Plow System by Eagle Plow
Eagle Plows date back to the 3-wheeler era, they have withstood the test of time & we continue to innovate the industry’s first plows today. Blades continue to be engineered & manufactured in Minnesota, USA, by the snow experts from US Prime steel for maximum strength & durability. Starting with 11-gauge steel, then precision laser cut, rolled, & welded for just the right performance & durability. All plow systems are coated with a high-gloss, powder-coat finish in black, red or yellow depending on blade style.
The latest designs of push tubes & plows interchange with the classic designs, making upgrading to a new machine economical & effortless. Each blade easily engages & disengages from the plow system in between uses or for storage.

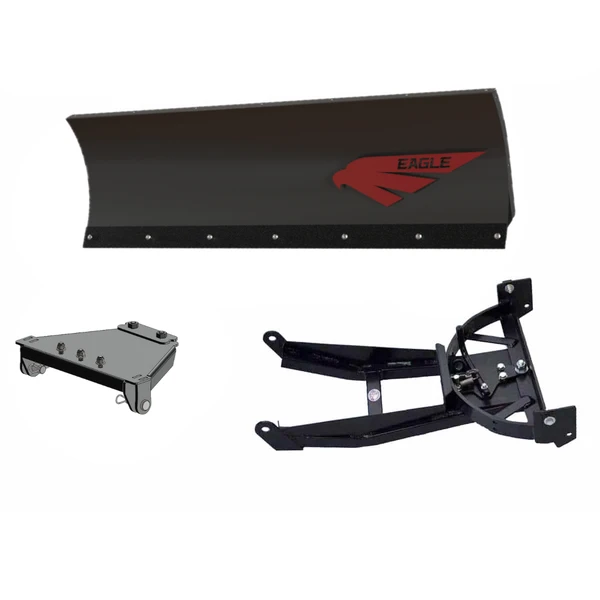

Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Blade Features:
- Blade mounts to the push tube swivel with 1/2” bolts
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Comes with trip springs & eye bolts for added blade plowing protection
Standard Straight Blades
- Rugged design allows for easy snow rolling
- Tough, heavy duty wear bar is reversible & replaceable
- Manually adjusts to 5 blade positions or is compatible with the hydraulic EagleMotion Pac
- 66”, 72” & 80” blades come with rubber flap & plow markers
- Use the adjustable skid shoes with spacers to protect the blade & surface
Slanted Country Blades
- Slanted design is best used for high-capacity plowing
- Tough, heavy duty wear bar is reversible & replaceable
- Manually adjusts to 5 blade positions or is compatible with the hydraulic Eagle Motion Pac
- All Country Blades come with a rubber flap & plow marker
- Adjustable skid shoes with spacers allow for smooth surface contact
Push Tube Features:
- Manufactured from 1 1/2" high-strength formed tubing
- Multiple cross members and V-shaped design for added hardiness to the entire system
- Powder coated jet black
- Standard Push Tube for attaching to UTVs with tires
- Extended Push Tube available for attaching to UTVs with tracks
**This purchase includes the Eagle Plow Push Tube Part # AM2805
Eagle Swivel System:
- Manually adjust to 5 Positions offering 30° of rotation to each side.
- Rotates on heavy duty 5/8” bolt mounted to ¼” solid steel
- Curved swivel is manufactured from 3/8” steel
Eagle Blade Mounting:
- Blade attaches to the Swivel System with ½” bolts
- Adjustable, bolt-on blade stops offer 4 blade hitch positions
- Heavy duty trip springs & eye bolts protect your blade when plowing
Optional Extended Push Tube for Tracks: (Part# 2808)
- 3” taller and 11.750” longer than standard UTV push tubes
Model Specific UTV Front Mount Features:
- Manufactured from 1/4” steel & attaches with grade 5 hardware to the frame
- Clevis pins are included for attaching push tubes
- Some mounts may recommend off-season removal to maintain ground clearance
NOTE: Must have a winch to use the plow system.
Add-on Eagle Winch Features: (Part # AM1930)
- Tow Limit - 4,500 lbs.
- Winch Dimension - 14.5” L x 4.87” H x 4.5” W 4
- Cable/Rope Dimension - 42’ x 7 /32”
- Includes: Winch, steel cable, rubber cable stop, heavy-duty fairlead, battery & motor cables, solenoid, handlebar rocker switch & mount, safety pull strap, mounting hardware, snatch block, hook
Add-on Plow Markers Features: (Part # AM2950)
- Provides increased visibility while plowing
- To be put one on each side of the plow
- Comes in pairs with all mounting hardware and instructions.
Add-on Side Shields Features:
- Reduces the side overflow of snow while plowing.
- Add-on Side Shields for Standard Blade (Part # AM2941/ AM2942)
- Add-on Side Shields for Country Blade (Part # AM2943)
