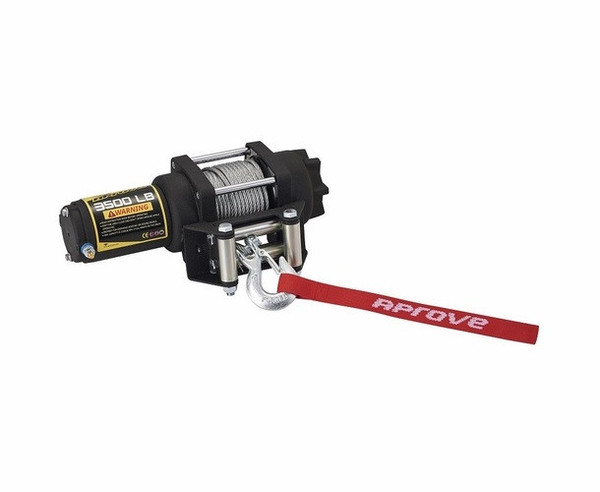

Powerful and reliable: Polaris Ranger 3500 lb. Winch by Aprove - your ultimate off-road companion.
Read More
Winch Features:
- Rated line pull: 3500lbs. (1589kgs) single-line
- Motor: 12V DC, 1.1hp (825w) permanent magnet
- Control: handlebar switch
- Gear train: 3-stage planetary
- Gear ratio: 136:1
- Clutch (free-spooling): cam actuated
- Brake: dynamic. mechanical brake is available
- Drum diameter / length: 2.0" / 2.9"
- Steel Cable: 4.8mm x 15.24M
- Synthetic Cable: 4.8mm x 15.24M
- Fair lead: 4-way roller fair lead (for steel cable)
- Fair lead: aluminum Hawse fair lead (for synthetic cable)
- Recommended battery: 12 amp / hour minimum for winching
- Battery leads: 6 gauge
- Finish: black
- Low noise level < 80 dB
- IP67 waterproof for winch body
- Bolt pattern: 3.00" x 4.875" (4 hole)
Optional Fairlead Mount Features:
- Compatible with standard spool roller and aluminum hawse fairleads
- Designed for 4-bolt patterns of: 3" x 4.875"
- Mounts to flat surfaces
Note: Does not include winch mount.
